SL-C9 head motor
Description This head motor is brushless using the Hall effect. It is used on all Sony models post SL-C9, e.g. SL-C20 / SL-C24 / SL-C30 / SL-C40 / SL-F25 / SL-F30 / SL-HF100 / SL-HF150 / SL-HF950.
Symptoms The head motor fails to rotate, the unit therefore shuts down a short while after any transport mode (play, wind etc...) is activated.

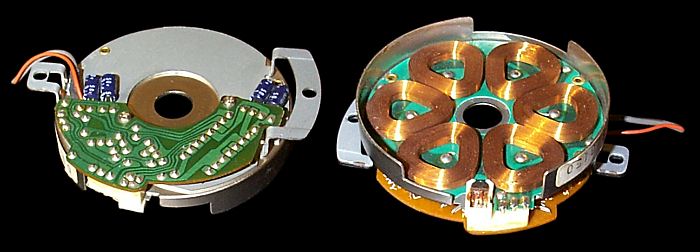

Fixing More often than not, the Hall effect sensor on the motor fails and will need to be replaced. This is a small, 4 legged component that can be seen on the right hand side image in the white area at the bottom.

Hall effect sensors can be difficult to source, although with care, spares from other models can be used (such as from Sanyo and Toshiba).

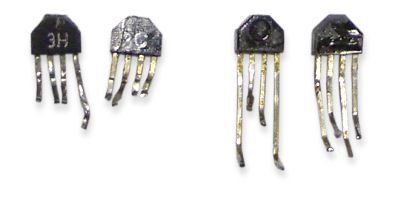

hall effect sensors
The left 2 images are taken from a Toshiba drum motor.
The right 2 images are taken from a Sanyo VTC-M20 capstan motor board.

In a few cases, the device can be made to work again by scraping away the glue attaching the device to the board. This glue sometimes becomes conductive shorting out the electrical signals. This is prone to occur when the unit has been in a damp environment resulting in moisture being absorbed by the glue. It is recommended to remove this glue.

hall effect sensors with glue
Hall effect sensor attached with glue

The motor can also fail due to dry solder joints or when the electrolytic capacitors dry up. The coils connect to the 3 pin block on the circuit board, and the hall effect sensor to the 4-pin block.

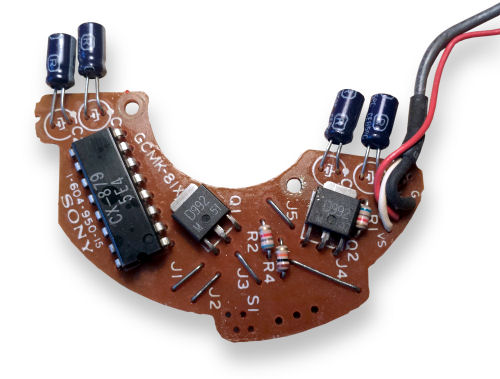

hall effect circuit board
Hall effect circuit board
From left to right: Capacitors 1µF, 1µF, 0.1µF, 0.1µF all are rated 50v

If both of these approaches fail, it will be necessary to replace the sensor with a second hand one taken from another machine. There are various designs of hall effect sensors, but if it looks the same as the Sony one, it will probably be compatible.

These other units tend to have shorter leads which will need to be extended to fit the Sony. A trick for fitting them is to use four Teflon coated wires (wire wrap type) stripped bare for a suitable length and passed through the four mounting holes on the drum motor board. Then solder these to each of the device legs taking care that they are bent to replicate the original pattern and clearance for the legs. Next draw the excess wire back out of the holes to pull the hall sensor in place and bend over each wire on its pad then solder / wriggle / break the excess wire off.

The correct orientation for fitting the sensor is with the lettering side not visible.

To remove the board you need to (whilst having the machine in the best orientation to do each task):

  1. Take off the case bottom cover.
  2. Remove the screws and flap out the small circuit board covering the reel assembly/capstan and drum motors.
  3. Remove the drum nut and magnet being sure to put aside the washer beneath the nut and on the shaft under the magnet.
  4. Top side of the machine, unscrew and fold out the tuner board.
  5. Disconnect the three wire drum motor drive lead (white three pin connector with red lead and grey/white screened lead).
  6. Top of drum note the arm positions for the post guides then loosen the left hand side (first guide and swing it away from the white upper tape edge guide) .
  7. Swing aside the earthing bar out of the way of the drum and remove the two screws and the white upper guide.
  8. BEING VERY CAREFUL NOT TO TOUCH THE VIDEO HEADS OR LET THEM HIT ANYTHING.
  9. Get as much slack as you can in the remaining leads to the drum and remove the three drum retaining screws with springs and washers.
  10. From above the machine carefully lift the drum assembly out of the machine so you can access and remove the two screws holding in the drum circuit board .
  11. Below the board open the white catch holding the cables and remove the circuit board.
  12. Assuming the machine is right side up, rest the Drum assembly back in the machine (for safety of the heads)
  13. Repair the circuit board by replacing the hall effect sensor. Remove all the glue holding it in place. It is probably not necessary to reglue the sensor, instead rely on lead tension to hold it in place.
Installation is the reverse procedure, again taking great care not to damage the heads.

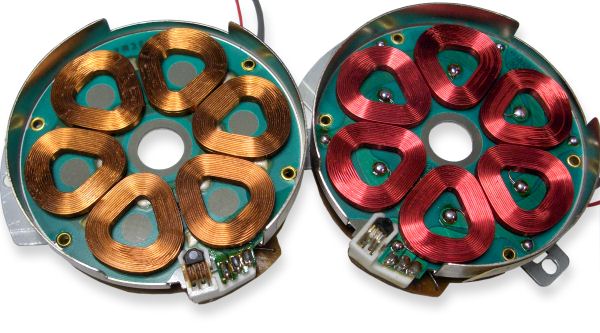

head motors
The left drum motor is faulty (note glue still on sensor.)
The right motor has been repaired. (wire colour makes no difference, the boards are the same.)


Thanks go to Noel Higgins for suppling this information.
