PVC-2300
NEC 1978
Betamax PVC-2300



beta vcr logo

Overview

V-5250 front flap controls

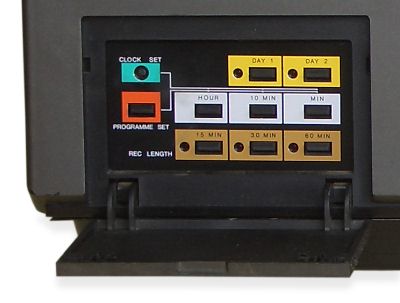

Clock and timer controls

V-5250 interchangeable RF unit

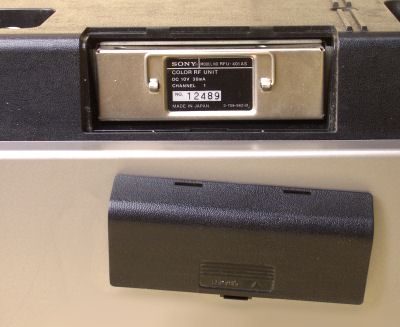

Interchangeable RF unit

V-5250 top controls

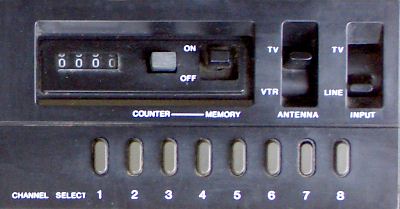

Top controls

V-5250 tuner controls

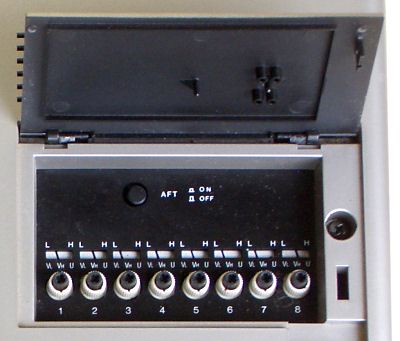

Tuner controls

The NEC PVC-2300 was a clone of Sony's SL-8000 model. It was also cloned by Toshiba for their V-5250 model. This model was one of the so called early 'piano key' models. It was a very advanced VCR in its day.

Note, the detail images shown here have been taken from the V-5250 model.

At the rear of the machine it has video inputs and outputs via BNC connectors and audio in/out via RCA connectors. It also has a mains voltage selector.

The PVC-2300 was a very basic VCR. It had no cue/review controls but did have pause, albeit with muted video. It did have a mechanical tape counter as well as a one event timer.

Looking back now it appears to be a massive, heavy old fashioned machine and is really only of interest to collectors.


Features include:

  • 8 channel tuner
  • 'Piano key' style controls
  • Interchangeable RF module (at the rear)
  • TV / line selector
  • Tape counter with reset and memory controls
  • Mic input


Our thanks go to Noel Higgins for supplying the information on this model.
