V-51
1983
Betamax V-51



beta vcr logo

Technical

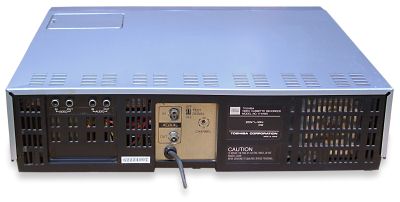

Toshiba Betamax V-51 rear view
Rear view

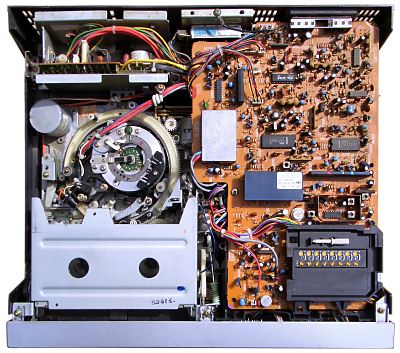

Toshiba Betamax V-51 inside view
Inside

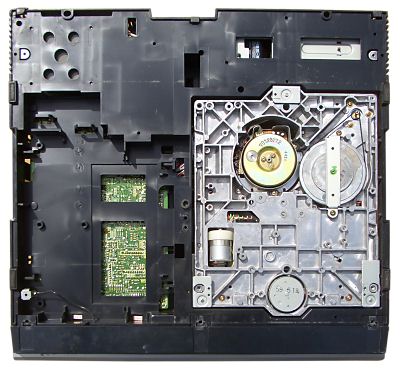

Toshiba Betamax V-51 underside
Underside

No picture

This VCR suffered from bad head wear. If you are getting a distorted picture then be sure to check the head.

No reel rotation

This can be caused failure of capacitors in the servo circuit.

Belts

The V-51 model had fewer belts to service than the V-31, but they are still a maintenance issue. The rubber belts, drive belts and drive reels tend to stretch and harden over time and can cause these machines to fail in a similar manner to the Sanyo and early model Sony machines.

Reel drive motor

The reel drive motor begins to generate noise when they are badly worn which is seen as random coloured dashes on the playback video. Additional filtering by adding ferrite inductors to the motor's input lines can reduce the problem however replacement of the motor is the best cure. The motor can be seen in the lower right hand side of the underside of the machine.

Loading failure

Check the worm drive coupling to the metal shaft. This can split over time.


Quick fault guide

Please click on the link if you are able to contribute a solution to this list. Add a new quick fault guide entry.

If you have a question about this model, please raise it on the chatpage.

FaultSolution
Add new solution
