| 1982 | |
|||
|
||||

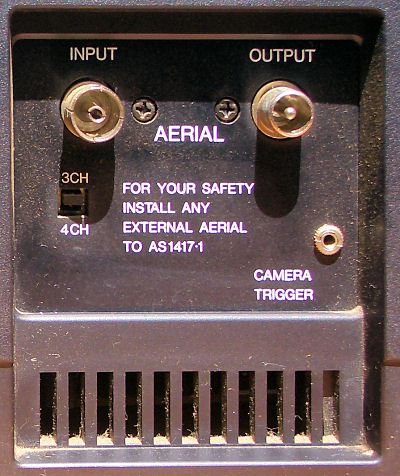

 Rear connectors
|

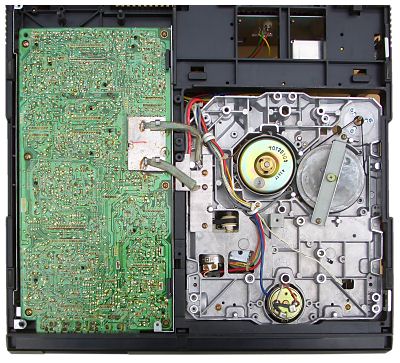

No pictureThis VCR suffered from bad head wear. If you are getting a distorted picture then be sure to check the head.No reel rotationThis can be caused failure of capacitors in the servo circuit.Failure to load a tapeThis is often caused by failure of the cassette carriageBeltsThe rubber belts, drive belts and drive reels tend to stretch and harden over time and can cause these machines to fail in a similar manner to the Sanyo and early model Sony machines.Reel drive motorThe reel drive motor begins to generate noise when they are badly worn which is seen as random coloured dashes on the playback video. Additional filtering by adding ferrite inductors to the motor's input lines can reduce the problem however replacement of the motor is the best cure. The motor can be seen in the lower right hand side of the underside of the machine.
Quick fault guidePlease click on the link if you are able to contribute a solution to this list. Submit new quick fault guide entry
