SL-F1
1983
Betamax SL-F1



beta vcr logo

Accessories


RMT-211

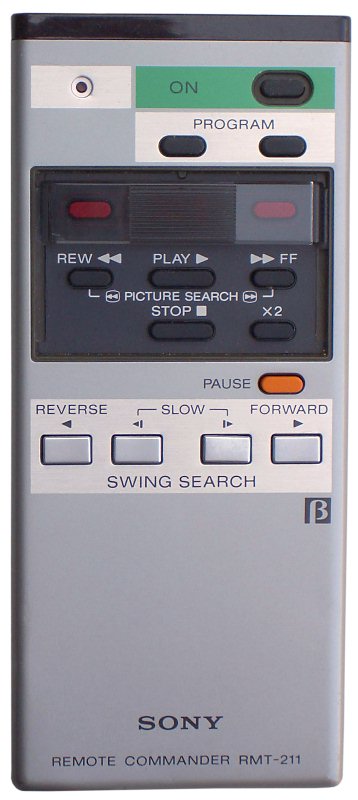

Remote Control RMT-211

This worked in conjunction with the TT-F1 to control the functions of the SL-F1.

PCM-F1
PCM-F1
PCM-F1

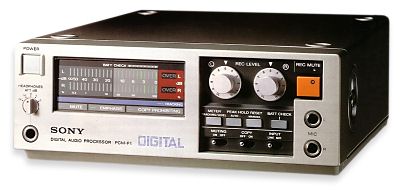

This is a digital audio processor which went along with the F1 and enabled CD quality sound recording to be made. Click here for full details on this unit.

See http://www.liebrand.nl/la/f1.html for an interesting example use of the SL-F1/PCM-F1 in a recording studio environment.


RM-311

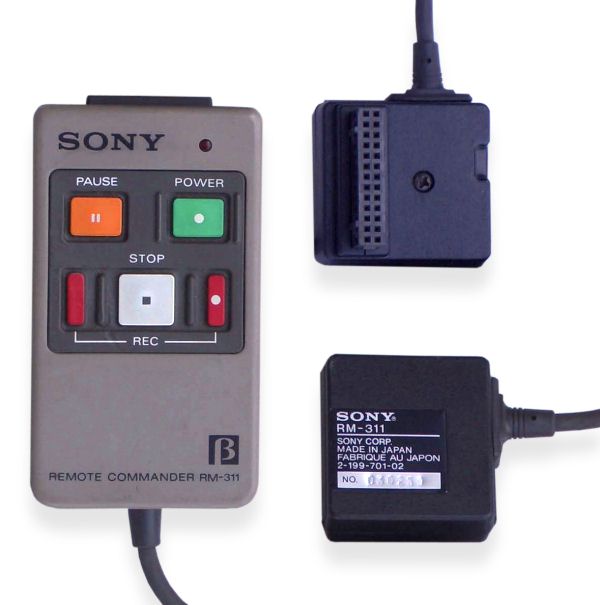

Wired Remote Control RM-311

This connects directly to be rear of the SL-F1.

NP-1
NP-1

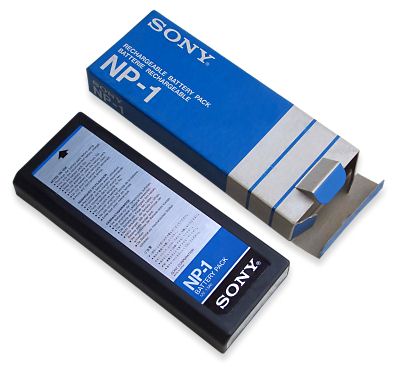

NP-1 Rechargeable Battery

The NP-1 was a Nicad rechargeable battery which powered the SL-F1.

CCK-4MP
CCK-4MP
CCK-4MP

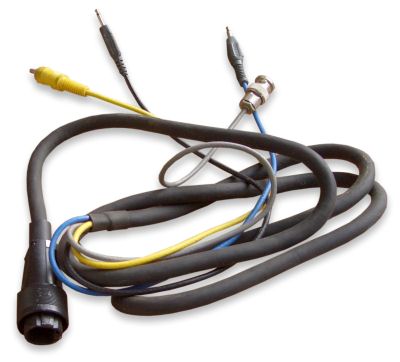

Camera cable - click for the pin out details.

CCK-4MP
DCC-2500
DCC-2500

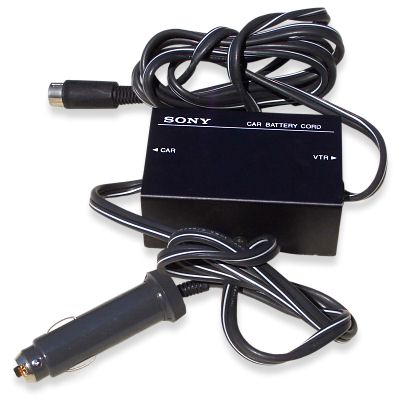

Car battery cord with stabilzer.
Max rating 3A.
Part number: 2-299-203-01.

TT-F1E/UB
TT-F1
TT-F1

This is the companion tuner/timer unit. It could also power the SL-F1.


SL-F1 backpack
Others

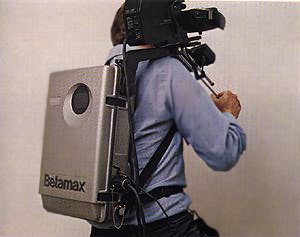

There were many other accessories for the SL-F1 such as a backpack and a camera HVC-2000.

AC-220
AC-220
AC-F1

This was an external power supply and NP-1 battery charger. Also available was then AC-700 which looked similar in style but was a stand alone power supply only.


Many thanks to Noel Higgins, Hamid Khan and Harri Asunta for help with pictures.
