Thickness gauges

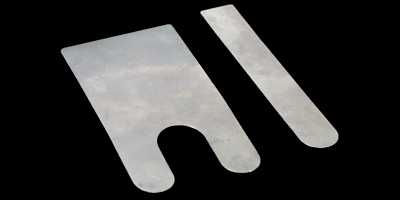

Description This wafer thin set of thickness gauges are used to accurately set the clearance gap between the shield and the rotor of the head motor. This gap must be between 0.3mm to 0.6mm.

See also the drum assembly
