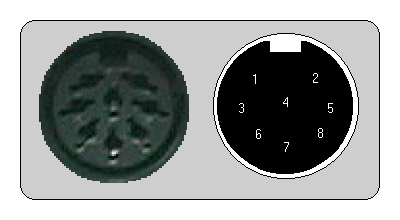

This connector is only found on a couple of models (including the SL-C9). It is used to connect the video to a changer unit. These pin descriptions refer to the conections at the video end of the cable. This layout given is the full specification for this connector. 1 Switched 12v - internally fused in the video, rated at 500mA. 2 Record ready - when low, the unit is in timer REC READY mode. 3 NOT IR-2 - remote control data for controlling the remote control microprocessor. 4 IR / NOT EXT - select signals for the remote control microcomputer. 5 R-SO 6 Ground (12v) 7 NOT S-Clock 8 NOT S-Data
