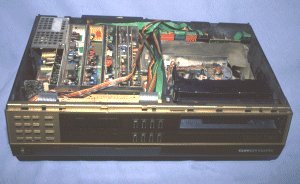

Inside the VCRInside the V2080 shows many hall marks of Philips construction. The style of construction is similar to that used in the manufacture of the NV1500 series VCR. Indeed it would appear that the same production line might well have been used. If you look carefully at the cables which inter-connect the PCB's you can see the large plugs and sockets which suffer badly from dry joints.
Video HeadsIf the VCR suffers from mistracking first check the voltage drive to the piezo-electric crystals used in the Dynamic Tracking circuits. Video heads for V2000 machines are now rare and extremely difficult to obtain. |
Quick fault guide
Please click on the button if you are able to contribute a solution to a fixing a fault on this model or would like to add to, or update PALsite's information on this model. Please note, questions will be removed.If you have a question about this model, please raise it on the chatpage.
| Fault | Solution |
|---|---|
| Click to be the first to add a solution to fixing a V2080 fault. |
