V-5470
Toshiba 1980
Betamax V-5470



beta vcr logo

Technical

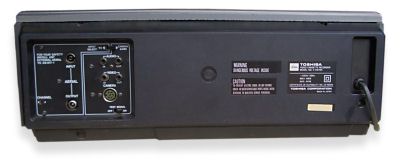

V-5470 rear view
Rear view

Tape transport is sluggish / fails to rewind

Internally the VCR contains many drive belts which are used in the mechanics of tape transport. With age these belts become slack causing malfunctions and when this happens the whole lot should be replaced.

Repair videos by Colin McCormick

Two long videos from Colin (video99.co.uk) showing how to repair a V-5470.

Quick fault guide

Please click on the button if you are able to contribute a solution to this list or would like to add to, or update PALsite's information on this model. Please note, questions will be removed.

If you have a question about this model, please raise it on the chatpage.

FaultSolution
General Toshiba V5470B Betamax repairTwo (long) YouTube videos showing the repair of one of these:

https://www.youtube.com/playlist?list=PLhKYgBM5T9vYj6znlnPv0vlj1Af4wtfqN

video99.co.uk

No colour on playbackFaulty pilot burst cleaner IC203.
Drum motor continues running after ejectCheck 12v supply rails for power leakage. Check D998 (TV/VCR switch panel) for short circuit.
Not recording picture, Q404/405 not workingIncorrect transistor bias due to leaky C419.
Record button releases during timer recordingsCheck R619 is 330K. Earlier versions used 150K here and require upgrading to higher value.


Many thanks to James Copp-Taylor for providing information and picture of this model
