| 1984 | |
|||
|
||||

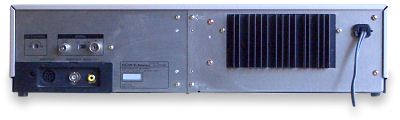

Rear view
|
Fault and repair guideStops in play or recordThe first thing to check is that there is adequate torque on the take up spool. If there isn't much then the cause is usually down to two contributing factors.The first is the drive pendulum which can cease up and the second, and the second more serious factor, is wear on the reel motor bottom bearing. The pendulum is simple to replace but the bearing is moulded into the chassis and replacement necessitates that the entire chassis be replaced. One possible compromise is to fit a small piece of plastic into the bottom bearing to raise the rotor and allow it to move freely. Sony supply a repair kit for this purpose. |
If you have a question about this model, please raise it on the chatpage.
| Fault | Solution |
| explosion and thick white smoke in PSU, the VCR still work perfectly | just remove, or replace the two 0,068µf 250V capacitors, near the L1 in the power supply.
You can just remove them without replacing, they are not absolutely necessary, they are here only for a basic filtering of the main AC. |
